Kyosho Mini-Z MR03 Sports SUBARU BRZ DARK GREY (N-RM/KT19)
Reference : K.32218GM
Description
Highly anticipated MR-03 chassis + 2.4GHz Readyset!
Front suspension optimizes camber angle in concert with stroke. Thoroughly low center of gravity design. Powerful drive train. No detailed overlooked to create the strongest MINI-Z Racer MR-03 chassis. Exceptional performance is now available in a Readyset for everyone to enjoy! Requires no frequency band selection and up to 40 cars can be run together at the same time. Also compatible with all MINI-Z Racer scale bodies. With the user-friendly features of a Sports version, the dynamic racing performance from its MR-03 base becomes immediately obvious as soon as you drive. This is the true essence of the MINI-Z. The chassis features a connector for the installation of a special light unit (Not Included) that lights up/flashes headlights and taillights in response to throttle and brake control. This is no cheap gimmick but scale realism in its most complete sense. MINI-Z Racer Sports MR-03 Readyset brings performance and style within easy reach for everyone to experience and enjoy!
- Features Perfex KT-19 transmitter. Steering volume adjustment possible.
- Factory assembled with quality finish suitable for interior display.
- All MINI-Z Racer bodies can be installed. *Requires compatible motor case and diff gear assembly.
- Features unique front suspension (VCS) that delivers optimum camber change in concert with suspension stroke.
- Spring stopper can be detached with just two screws for easy replacement of coil spring on front suspension.
- A huge variety of parts for MR-03 chassis can be installed.
- Optional gyro unit and ICS cannot be used.
- Also, this model is specially designed for the KT-19 transmitter so there is no compatibility with the former KT-18 transmitter/EX-5UR ASF transmitter (No.82011).
Readyset Contents :

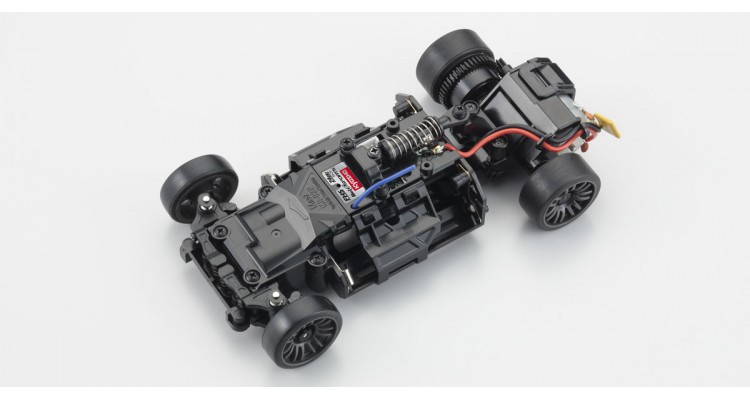

- Factory assembled chassis
- Pre-painted factory assembled plastic body finished with markings

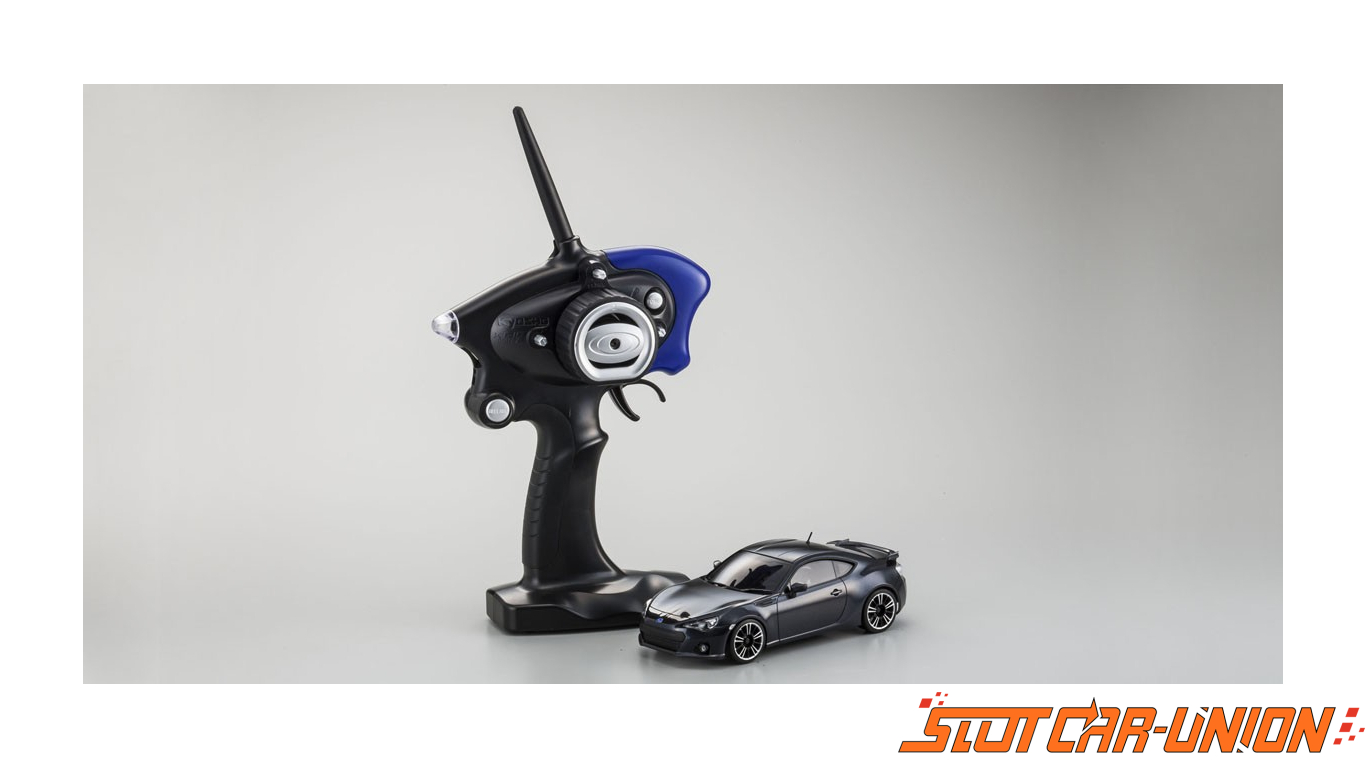

- 2.4Ghz transmitter Perfex KT-19
- Parts set for changing front tread
- Front suspension spacer for adjustment
- 6T, 7T, 8T, 9T pinion gears
- Wheel wrench
- Pinion tools
- Spare wheel nut
- Tires and wheels included
Battery Requirements (not supplied) :
- x4 AAA/LR3 or Ni-MH batteries for chassis.
- x4 AAA/LR3 or Ni-MH batteries for transmitter.
Technical sheet
Brand
Subaru
Color
Black
Motor
130-Class
Transmission
Rear-wheel-drive (rear 2 wheels)
Gear ratio
7.3, 6.3, 5.5, 4.9:1
Lighting
Optional with MZW429R Kit
Length
124~133mm (MM Chassis:125~133mm, RM Chassis;124~132mm)
Height
34~35mm
Depth
65~76mm
Wheelbase
86~106mm (86, 90, 94, 98, 102, 106)
Rear Tire
25~27x8.5~11mm
Front Tires
23.5~25x8.5mm
Weight
135g approx.
Type of transmitter
2,4Ghz
Power supply
x4 AAA/LR3 Batteries (not supplied)
Scale
1:27
