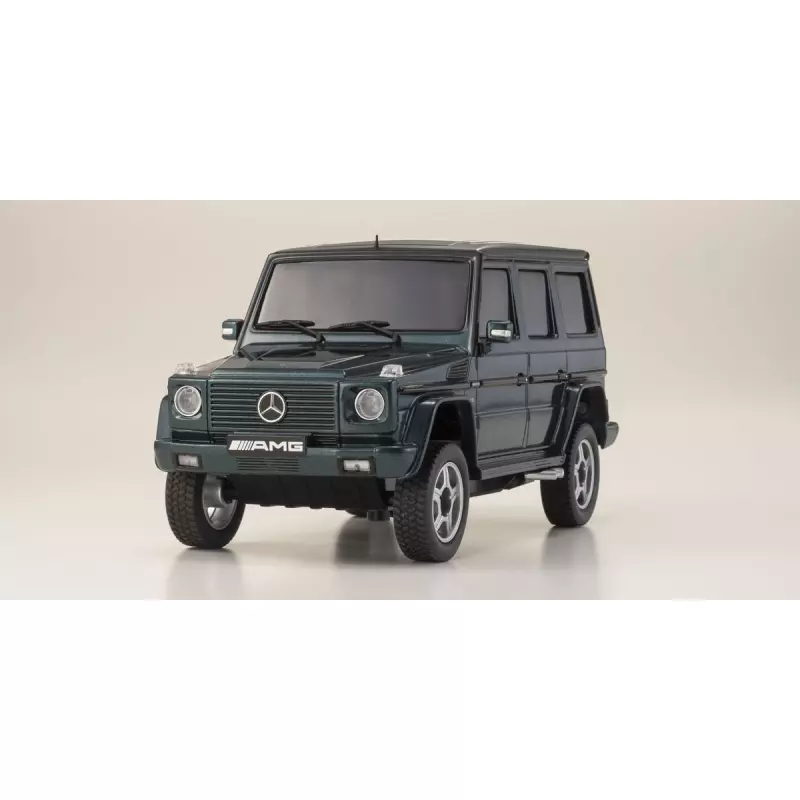

Kyosho Mini-Z Overland MV01 Sports MERCEDES G55L AMG GREEN (KT19)
Reference : K.32061G
Description
Go cross country inside your own home with a 2.4GHz R/C system that automatically manages frequency bands!
The new SUV chassis is gyro compatible and drops you deep into an amazing off-road experience!
The dynamic performance of the MINI-Z Overland brings cross-country action indoors with the introduction of this Sports version Readyset including 2.4GHz R/C system. An amazingly compact chassis incorporates precision four-wheel independent suspension with deep stroke and large tires to deliver amazing running performance. A newly designed digital servo produces responsive control and solid holding power while the chassis hurtles over jumps and charges through gaps and obstacles for cross-country performance to match it SUV pedigree. Also, an optional gyro can be simply bolted in place to provide a sophisticated control mechanism for unexpected swerving at high speeds. The Readyset is fully factory assembled and includes everything needed except batteries. Simply insert batteries and you are ready to rumble straight away. For the ultimate experience in indoor off-road excitement, the MINI-Z OVERLAND Sports Readyset is the answer!
- Readyset requires only batteries to be ready for action.
- 2.4GHz R/C system requires no setup of frequency bands.
- Includes Perfex KT-19 transmitter.
- Equipped with 3 bevel diff gears for smooth and stable cornering.
- Damper units on all four wheels work together to hug the contours of the road.
- Ample approach and departure angles allow aggressive running power.
- Equipped with front under-chassis guard to protect against hits coming from the road surface.
- Special pattern pneumatic rubber tires mean you can choose any surface to run on.
- Pinion gears included allow four different gear ratios to be chosen.
- Two motor fixing plates require no adjustment for smooth gear teeth mesh.
- Suspension with swing arms and parallel upper rods realize deep suspension stroke.
- A wide variety of different body styles to be mounted by four different wheelbase settings.
- Includes diff locking plate to lock the differential gear for effective hill climbing etc.
- Extensive range of option parts available.
- Note : Optional ICS can NOT be used. Also, this model is specially designed for the KT-19 transmitter. It is not compatible with the KT-18 and EX-5UR ASF transmitters (No.82011).
Readyset Contents
- Factory assembled chassis with R/C unit installed.
- Plastic body complete with coloring and markings.
- 2.4GHz Perfex KT-19 transmitter.
- Pinion gears 4-types (9T,10T,11T,12T).
- Parts set for replacing wheelbase.
- Pinion gear tool.
- Spare nuts.
- Wheel wrench.
- Pairing stick
Battery Requirements (not supplied) :
- x4 AAA/LR3 or Ni-MH batteries for chassis.
- x4 AAA/LR3 or Ni-MH batteries for transmitter.
Technical sheet
Brand
Mercedes-Benz
Color
Green
Motor
130-Class
Transmission
Rear-wheel-drive (rear 2 wheels)
Gear ratio
13.6, 12.2, 11.1, 10.2:1
Lighting
No
Length
136~151mm
Height
47 mm
Depth
70 mm
Wheelbase
95~110mm
Tires size
30 x 10 mm
Axle width
60 mm
Weight
210g (approx.)
Type of transmitter
2,4Ghz
Power supply
x4 AAA/LR3 Batteries (not supplied)
Scale
1:27
Year of Production
2015
