Solder Joint with heat shrink connector (100 pcs)
Reference : SCU-TOOL02
€8.90
Tax included
You accumulate 0.24 € by buying this product
Description
No need for a soldering iron
Outstanding Features
- Quick connectors allowing 2 cables to be soldered together with a bricker.
- Size of the sheaths perfectly adapted for the cables of our slot cars (motor or lighting).
- Waterproof : features dual-walled design with polyolefin tubing in outside and hot melt adhesive in inside, which ensures waterproof seal and prevents wire corrosion.
- Transparent Sleeve of the butt connectors provide Visual In-
Specifications

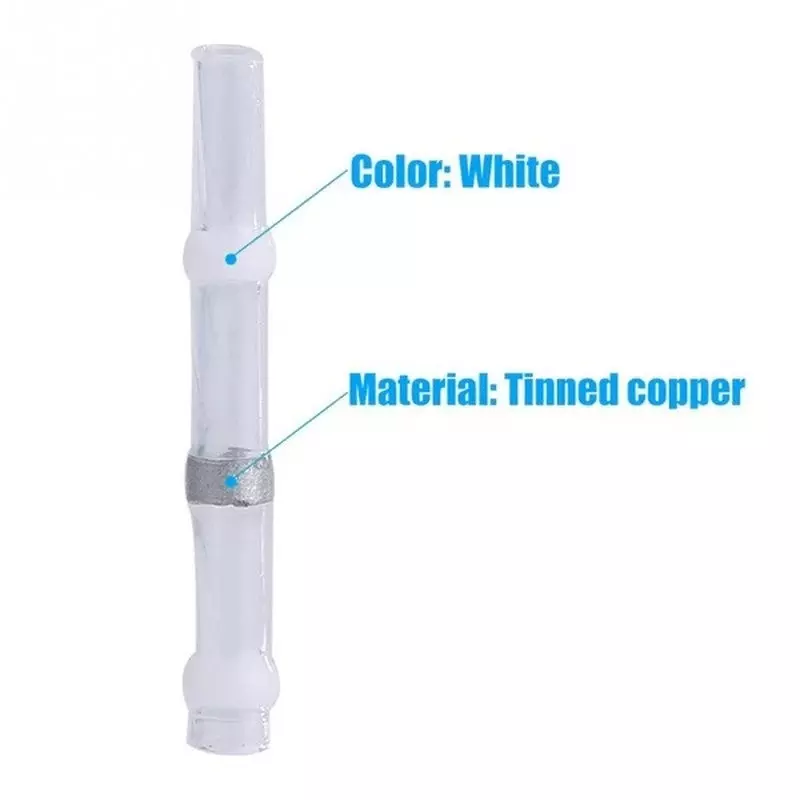

- Material : Tinned Coppe
- Color : White

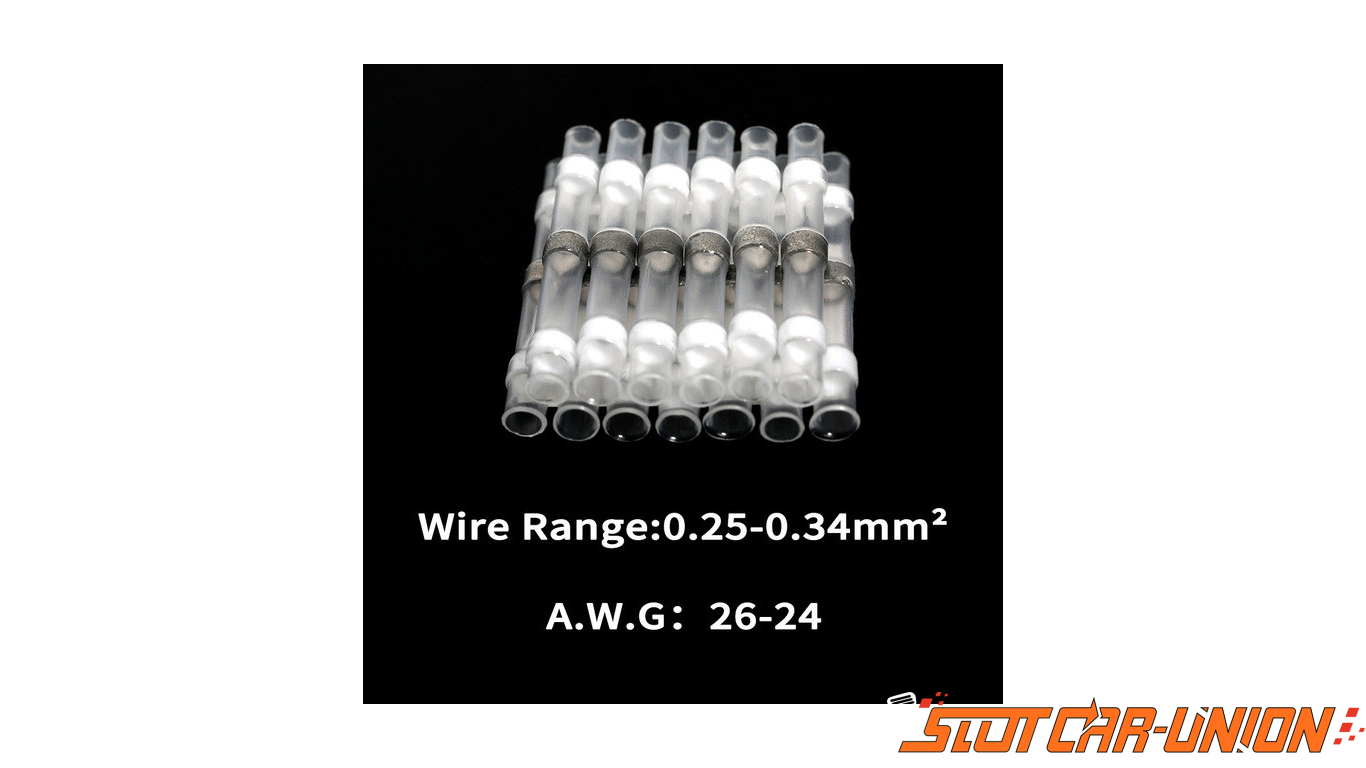

- Cable Cross-Section : 0.25-0.5mm2
- Wire Gauge : 26-24AWG
- Length: 26mm/1.02""
- Diameter: 1.7mm/0.06""

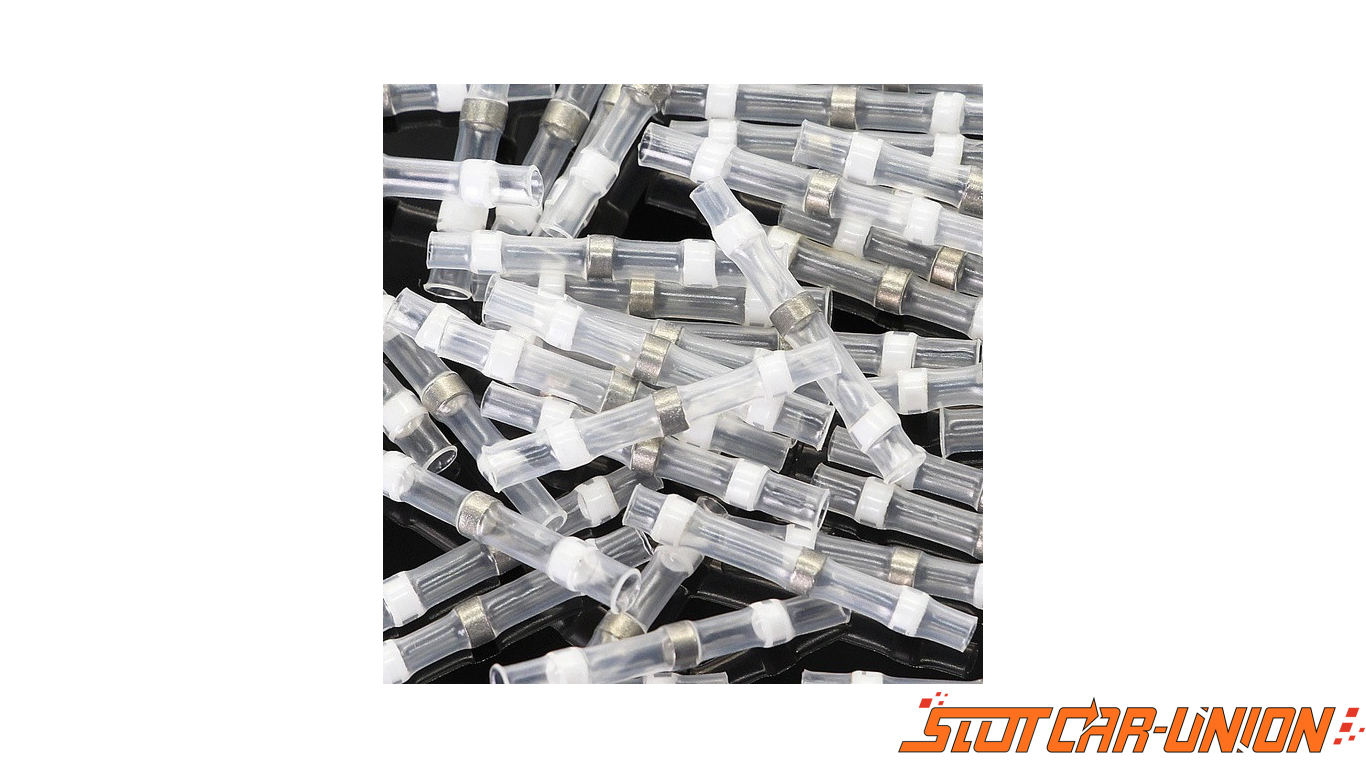

- Quantity: 100 pieces
- Allows to install a digital chip or lighting in 25 cars.
Prepare the wires :
Strip wire insulation 0,5 cm on both wire ends.
Position the wire into solder seal connector :
Move the connector to the middle of the two wire, align the tin ring to the uncovered wire.
Apply heat :
Use a lighter until the connector contracts to fit the wire tightly. We advise you to place a piece of cardboard on your chassis during the application of heat to avoid damaging the slot car.
3: 1 Shrink Ratio :
3:1 shrink ratio make your lines to be firmly connected
Waterproof :
Double waterproof design to prevent water ingress
Easy to use :
Just need a lighter to complete the the wires (the image indicates a heat gun, but we advise you to use a lighter to avoid damaging your slot car).
Technical sheet
Color
White
Outside diameter
1,7 mm
Length
26 mm
Type
Adjustment tool
